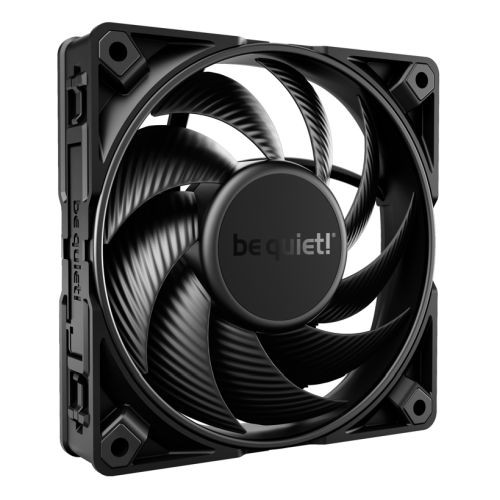

Limited Stock***. Order Securely Now with Next Day & Tracked Delivery Options Available. Great Deal and Fast Tracked Delivery. Order this Brand New Be Quiet! (BL098) Silent Wings Pro 4 12cm PWM Case Fan, Black, Up to 3000 RPM, 3x Speed Switch, Fluid Dynamic Bearing. Part Number: BL098.
Silent Wings Pro 4 120mm PWM is the most progressive, performant and versatile fan by be quiet!
Optimized fan blades for the highest performance on radiators and heat sinks
Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 3000 rpm)
Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
Virtually inaudible operation at regular speed
6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
Individual mounting systems for use as a case fan or with a radiator
5-year manufacturer warranty
Improved On All Levels
Altered blade arrangement for new generation performance
The fan blades are what makes a fan. It is for this reason that the fan blades of Silent Wings Pro 4 120mm PWM have been developed newly from scratch. The new blade arrangement enables a performance second to none for all possible operations. Be it in a case, on radiators or heat sinks.
Optimized for High-End Performance
Minimum distance for maximum air pressure
Silent Wings Pro 4 120mm PWM makes for extraordinary air pressure and therefore, significantly increases the system’s performance. The decreased distance between the fan blades and the frame enables an extraordinarily high air pressure. By that, the Silent Wings Pro 4 120mm PWM allows the user to run even the most demanding applications.
Speed Switch
3 speed options for any possible application
The speed switch makes switching between medium, high-speed and ultra-high-speed of maximum RPM levels quick and easy. The Silent Wings Pro 4 120mm PWM alters its application with a simple slide to the right. Medium-speed is suitable for any operation that requires regular cooling performance. High-speed lets the fan spin faster, providing more cooling power. Ultra-high-speed ultimately offers enough rpm to cool even the most demanding hardware in high-end PC builds.
6-Pole Fan Motor
The key for virtually inaudible operation when needed
6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 36.9dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated
in mid-speed.
3 Different Mounting Options
For any purpose
Silent Wings Pro 4 120mm PWM has 3 mounting options in the scope of delivery. The pre-installed radiator corners are specially designed for radiators on which the incomparable performance of this high-end fan completely shines. On the other hand, for chassis use, the anti-vibration mounting is the first choice as they reduce vibrations to a minimum. The plastic mountings round up the scope.
Fluid-Dynamic Bearing
For a sustainable operation
The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings Pro 4 120mm PWM.
Elegant Look
Magnificent appearance in all details
The all-black design combined with a high-grade fan sticker makes Silent Wings Pro 4 120mm PWM a highlight in any system. The finely sleeved PWM cable perfectly rounds up the outer appearance of the fan. Not only does the PWM cable look great: its connector can also be plugged in and out with ease, making the fan an eye-catcher and user-friendly alike.
.
Description
Specification
Type: 12cm Case Fan
Fan Connector(s): 4-pin
Installation: Push pins and screwed installation options
#Hide#LED Lighting: No
Colour: Black
LED Lighting: -
Weight: 0.227 kg
Fan Dimensions: 120 x 120 x 25 mm
Fan Controller: PWM
Rotation Speed: "Up to 3000 RPM
Speed Switch offers 3 speed options: medium-speed, high-speed and ultra-high-speed"
Fan Bearing: Fluid Dynamic
Air Flow: 83.9 CFM @ 100% PWM / 12V
Noise level: 36.9 dB(A) @ 100% PWM / 12V
Power: Rated Voltage DC: 12 V Operating Voltage DC: 7 - 13.2 V Current consumption: 0.3 A Safety current: 0.33 A Input power: 3.6 W
Additional Features: See Overview / Video
MTBF: "Up to 300,000 hours"
Package Contents: Silent Wings Pro 4 fan Radiator optimized fan corners Rubber and hard plastic mountings Push-pins Fan screws Manual
