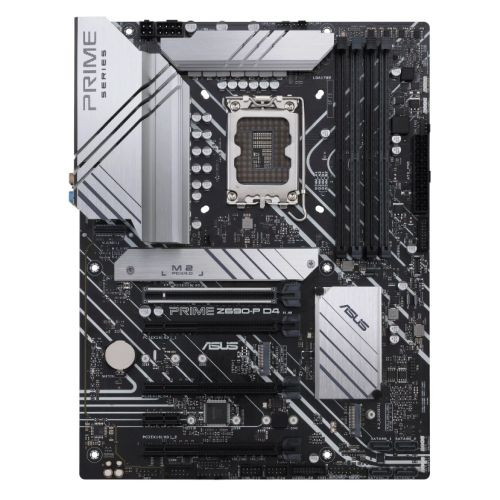

Limited Stock***. Order Securely Now with Next Day & Tracked Delivery Options Available. Great Deal and Fast Tracked Delivery. Order this Brand New Asus PRIME Z690-P D4-CSM - Corporate Stable Model, Intel Z690, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2. Part Number: 90MB18P0-M0EAYC.
Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS power stages, DDR4, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header and Aura Sync RGB lighting
Intel® LGA 1700 socket: Ready for 13th & 12th gen Intel® processors
Enhanced power solution: 14+1 DrMOS power stages, 8+4 pin ProCool connectors, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Cooling
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
Prime Z690 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Customisation
Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Graphics: Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI 1 x DisplayPort
PCI/PCI Express: 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 2 x PCIe 3.0 x16 (supports x4 mode) 1 x PCIe 3.0 x1
Storage: 4 x SATA III 1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280/22110) - SATA & PCIe 4.0
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported:Rear: 1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0
Front: 1 x USB 3.2 Gen1 Type-C 4 x USB 3.2 Gen1 4 x USB 2.0
Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C 1 x USB 3.2 Gen2 ype-A 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x DisplayPort 1 x HDMI 1 x V-M.2 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out 1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors: 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 3 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x 4-pin +12V 3 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 2 x USB 2.0
.: 3 x Addressable Gen2 1 x AURA RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x SPI TPM (14-1pin) 1 x 20-5pin System Panel 1 x Thunderbolt
Accessories: 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x Support DVD 1 x ACC Express Activation Key Card 1 x User guide
