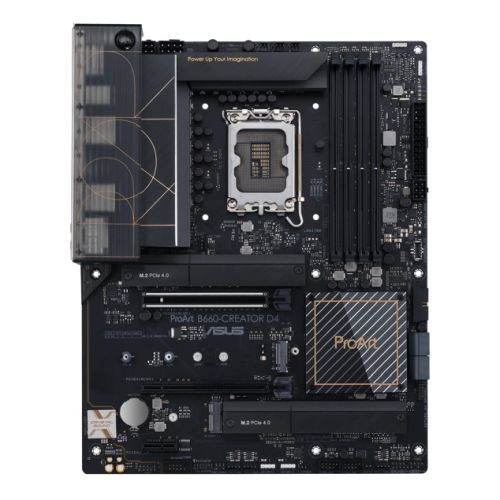

Asus PROART B660-CREATOR D4, Intel B660, 1700, ATX, 4 DDR4, HDMI, DP, 2.5GB LAN, PCIe5, 3x M.2, Creator Hub
- Brand
- ASUS
- SKU:
- 90MB19F0-M0EAY0
- UPC:
- 4711081518518
- Shipping:
- Calculated at Checkout
4 Great reasons to buy from us:
Intel® B660 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort™ and a USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+
- Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
- Next-gen performance: 12+1 power stages rated for 50 amps, PCIe® 5.0 ready
- Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
- Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express
Comprehensive Connectivity
An array of powerful I/O ports - including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots - enables quick data transfers and extensive storage options.
Next-Gen Performance
With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that's rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.
Optimized Cooling Design
Maintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.
Perfect for Content Creation
ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow.
Trusted Stability
ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility - all to ensure that it empowers creativity for years to come.
For more information please click here.
.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1700
- Chipset: Intel B660
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5333(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x USB 3.2 Gen2 Type-C supports DisplayPort output
1 x DisplayPort (Input only) - PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280/22110 ) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe - RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Wireless: -
- LAN: 2.5GB LAN & GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
10 x USB 2.0 (6 at back, 4 at mid-board)
1 x USB 3.2 Gen2x2 Type-C front connector w/ 60W PD/QC4.0" - Back Panel I/O Ports: 1 x DisplayPort (Input only)
1 x HDMI
1 x Realtek 2.5Gb Ethernet
1 x Intel 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
4 x USB 2.0
4 x USB 3.2 Gen1 Type-A
1 x USB Type-C supports USB 3.2 Gen2 & DisplayPort output - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x USB 3.2 Gen2x2 (supports USB Type-C w/ 60W PD/QC4.0) - Accessories: 1 x DisplayPort cable
2 x SATA 6Gb/s cables
3 x M.2 Rubber Packages
1 x Q-connector
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.1000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
