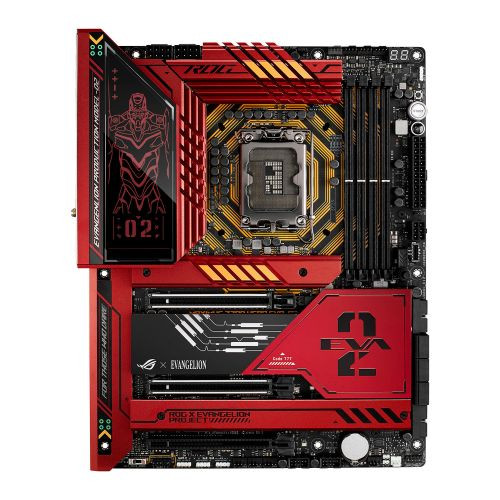

Asus ROG MAXIMUS Z790 HERO EVA-02, Intel Z790, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 2.5G LAN, PCIe5, Hyper M.2 Card, RGB, 5x M.2

Limited Stock***. Order Securely Now with Next Day & Tracked Delivery Options Available. Great Deal and Fast Tracked Delivery. Order this Brand New Asus ROG MAXIMUS Z790 HERO EVA-02, Intel Z790, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 2.5G LAN, PCIe5, Hyper M.2 Card, RGB, 5x M.2. Part Number: 90MB1FL0-M0EAY0.

Intel Z790 LGA 1700 ATX motherboard with 20 + 1 + 2 power stages, DDR5, five M.2 slots, PCIe 5.0 NVMe SSD slot on Hyper M.2 Card, PCIe 5.0 x16 SafeSlots with Q-Release, Wi-Fi 6E, two Thunderbolt 4 ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Robust Power Solution: 20+1+2 power stages, each rated to handle up to 90 amps, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
• Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
• Next-Gen M.2 Support: PCIe 5.0 M.2 slot on the bundled ROG Hyper M.2 card, and four PCIe 4.0 M.2 slots all with substantial cooling solutions
• Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1
• High-Performance Networking: On-board Intel WI-FI 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• Immersive Audio: ROG SupremeFX ALC4082 codec with ESS ES9218 Quad DAC for up to 32-Bit/384 kHz playback
• Unmatched Personalization: I/O cover with Polymo Lighting, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
• DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, and Clear CMOS button
• Renowned Software: Bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x Intel Thunderbolt 4 (USB-C)
  - support DisplayPort 1.4 and Thunderbolt video outputs
• PCI/PCI Express: "2 x PCIe 5.0 x16 (support x16 or x8/x8 modes)
  1 x PCIe 4.0 x16 (supports x4, x4/x4 modes)"
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - SATA & PCIe
  Hyper M.2_1 via Hyper M.2 card (2242/2260/2280/22110) - PCIe
  Hyper M.2_2 via Hyper M.2 card (2242/2260/2280/22110) - PCIe

• RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• USB Ports Supported: "2 x Thunderbolt 4 USB Type-C (at back)
  1 x USB 3.2 Gen2 Type-C (at back)
  5 x USB 3.2 Gen2 Type-A (at back)
  8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x USB 3.2 Gen2x2 Type-C front panel connector*

  *Up to 60W PD/QC4+"
• Back Panel I/O Ports: "2 x Thunderbolt 4 USB Type-C
  6 x USB 3.2 Gen2 (5 Type-A, 1 Type-C)
  4 x USB 3.2 Gen1 Type-A
  1 x HDMI
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button "
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x W_PUMP+
  1 x 2-pin Water In
  1 x 2-pin Water Out
  1 x 3-pin Water Flow
  1 x 24-pin Main
  2 x 8-pin +12V
  1 x 6-pin PCIe
  3 x M.2 (Key M)
• .: 6 x SATA 6Gb/s
  1 x USB 3.2 Gen 2x2 Type-C
  2 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen2
  1 x AURA RGB
  1 x FlexKey button
  1 x Front Panel Audio
  1 x Start button
  1 x ReTry button
• .: 1 x 10-1 pin System Panel
  1 x Thermal Sensor
  1 x CPU Over Voltage jumper
  1 x Alternative PCIe Mode switch
• Accessories: "1 x ARGB RGB extension cable
  4 x SATA 6Gb/s cables
  ROG Hyper M.2 Card
  1 x Thermal pad for M.2
  1 x DDR5 Fan holder
  1 x VRM Fan holder
  1 x ASUS Wi-Fi moving antennas
  3 x M.2 backplate Q-Latch package
  3 x M.2 backplate Rubber Packages
  1 x Q-connector
  ROG stickers, key chain, VIP card
  1 x USB drive with utilities and drivers "
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 4.5500 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
