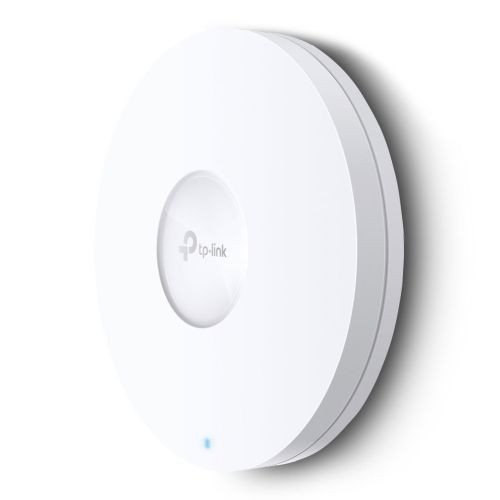

Limited Stock***. Order Securely Now with Next Day & Tracked Delivery Options Available. Great Deal and Fast Tracked Delivery. Order this Brand New TP-LINK (EAP660 HD) AX3600 Dual Band Wireless Multi-Gigabit Ceiling Mount Wi-Fi 6 Access Point, PoE+, 2.5GB LAN, MU-MIMO, Free Software. Part Number: EAP660 HD.
AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.
High-Density Connectivity: 4x increased capacity to connect more devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
High-Density Connectivity with 4x Increased Capacity
OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4x versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN-Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects With Rich Advanced Features
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
.
Description
Specification
Primary Function: Access Point
#Hide#Access Point Mode: Yes (Access Point Mode)
#Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
Bands: Dual Band
Max Wireless Transfer Rate: 2402 Mbps
Max Wired Transfer Rate: 2.5 Gbps
Interface(s): 1 x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Antenna(s): 2.4 GHz: 4 x 5 dBi 5 GHz: 4 x 6 dBi
Button(s): Reset
Power Supply: 802.3at PoE 12 V DC
Power Consumption: 18.5 W
Dimensions: 243 x 243 x 64 mm
Weatherproof: No
Frequency: 5GHz: Up to 2402Mbps 2.4GHz: Up to 1148Mbps
Wireless Functions: "1024-QAM 4x Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming"
.: Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security: "Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
Quality of Service: QoS(WMM)
Management: "Omada App Omada Cloud-Based Controller Omada Hardware & Software Controller Cloud Access Email Alerts LED ON/OFF Control MAC Access Control SNMP v1, v2c, v3 Local/Remote Syslog SSH HTTP/HTTPS L3 Multi-site Management Management VLAN"
